Jiangyin Rock Gabion Co., Ltd. is a supplier of gabion products used in river control, slope protection, and retaining wall construction. We offer customized gabion solutions according to project specifications. View our product overview to explore available gabion systems. For pricing, specifications, or technical support, please contact us by email.

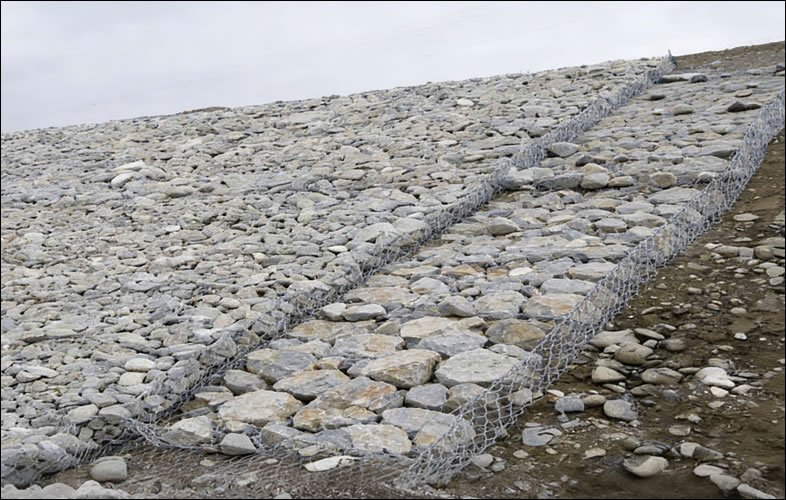

Galvanized Steel Gabion Boxes with Length 1-4 m, Width 0.5-1 m, Height 0.3-1 m for Riverbank Protection Systems
Specifications
- Length Range: 1.0–4.0 m standard gabion box length.
- Width Range: 0.5–1.0 m standard installation width.
- Height Range: 0.3–1.0 m wall structure height.
- Mesh Opening: 60×80 mm or 80×100 mm hexagonal mesh.
- Wire Diameter: 2.7–3.4 mm steel wire.
- Edge Wire Diameter: 3.4–4.0 mm reinforced edge wire.
- Zinc Coating: 245–275 g/m² galvanization.
- Stone Size: 80–250 mm rock filling diameter.
- Partition Spacing: 1 m internal diaphragm spacing.
- Unit Volume: 0.5–4 m³ capacity per unit.

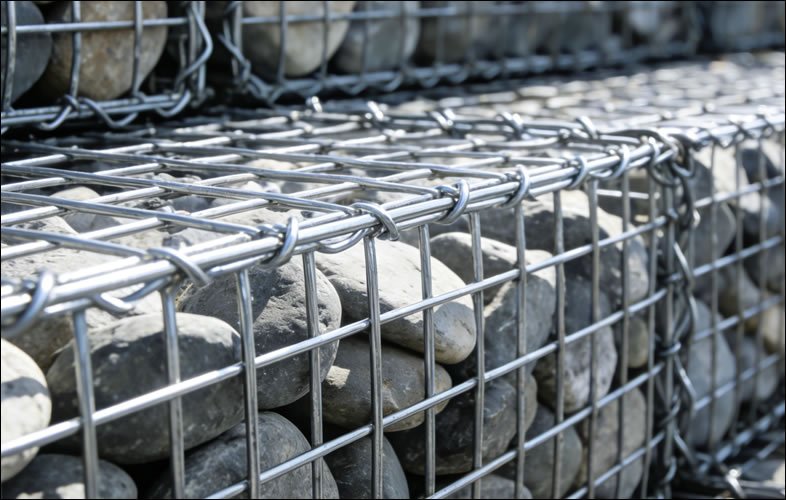

Galfan Coated Gabion Boxes with Length 2-4 m, Width 1 m, Height 0.5-1 m for Hydraulic Engineering
Specifications
- Length Options: 2.0–4.0 m units.
- Width Options: 1.0 m standard width.
- Height Options: 0.5–1.0 m structure height.
- Mesh Size: 60×80 mm or 80×100 mm openings.
- Wire Diameter: 2.7–3.0 mm Galfan wire.
- Edge Wire: 3.4 mm reinforcement wire.
- Coating Mass: 250 g/m² zinc-aluminum alloy coating.
- Stone Diameter: 100–200 mm filling stones.
- Partition Distance: 1 m diaphragm interval.
- Unit Volume: 1–4 m³ per gabion cage.

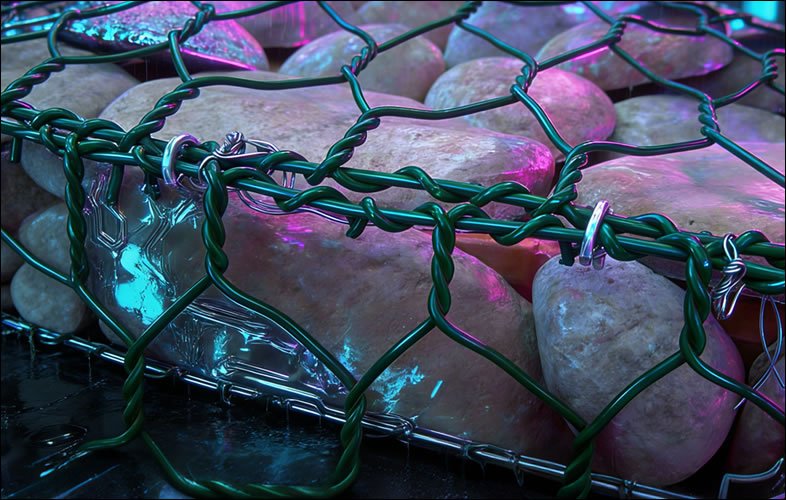

PVC Coated Gabion Boxes with Length 2-4 m, Width 1 m, Height 0.5-1 m for River Control
Specifications
- Length Options: 2.0–4.0 m units.
- Width Options: 1.0 m standard width.
- Height Options: 0.5–1.0 m cage height.
- Mesh Size: 60×80 mm or 80×100 mm mesh.
- Wire Diameter: 2.7 mm core steel wire.
- PVC Thickness: 0.4–0.6 mm coating layer.
- Edge Wire Diameter: 3.4 mm selvedge wire.
- Stone Diameter: 80–200 mm rock size.
- Partition Interval: 1 m diaphragm spacing.
- Unit Volume: 1–4 m³ per cage.

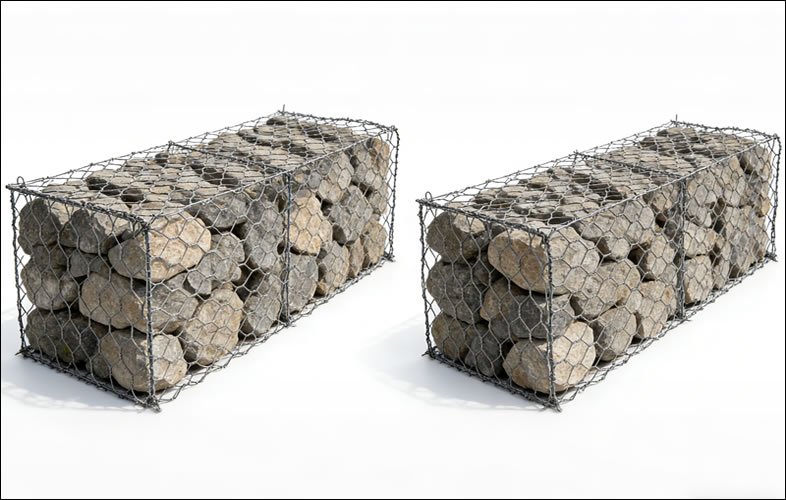

Stone Filled Gabion Units with Length 1-3 m, Width 0.5-1 m, Height 0.5-1 m for Retaining Walls
Specifications
- Length Range: 1.0–3.0 m.
- Width Range: 0.5–1.0 m.
- Height Range: 0.5–1.0 m.
- Mesh Opening: 80×100 mm hexagonal mesh.
- Wire Diameter: 2.7–3.0 mm steel wire.
- Edge Wire: 3.4 mm reinforcement.
- Stone Size: 100–250 mm rock filling.
- Partition Distance: 1 m diaphragm spacing.
- Unit Weight: 1–3 tons filled weight.
- Volume Capacity: 1–3 m³ per cage.

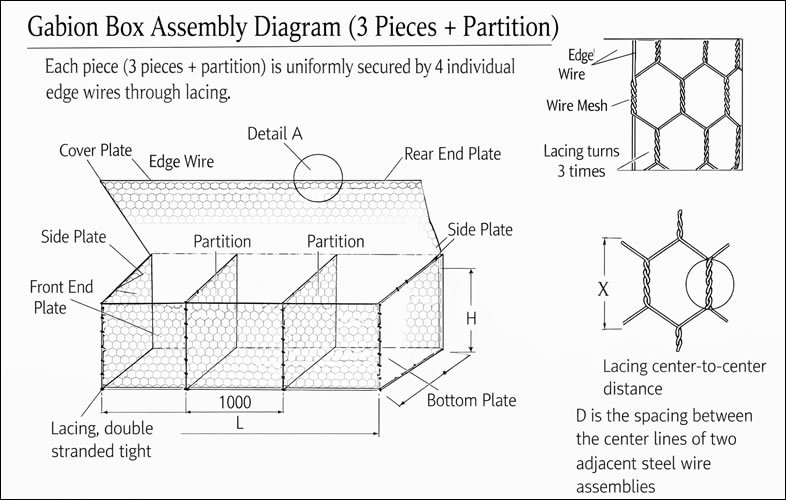

Gabion Box Units with Length 1-4 m, Width 1 m, Height 0.5-1 m for Wall Construction
Specifications
- Length Options: 1.0–4.0 m.
- Width Options: 1.0 m standard width.
- Height Options: 0.5–1.0 m.
- Mesh Opening: 80×100 mm hexagonal mesh.
- Wire Diameter: 2.7–3.4 mm steel wire.
- Edge Wire: 3.4–4.0 mm reinforcement.
- Stone Size: 100–250 mm filling rock.
- Partition Distance: 1 m diaphragm spacing.
- Volume Capacity: 1–4 m³ per cage.
- Installation Layer: 1–5 stacked layers.

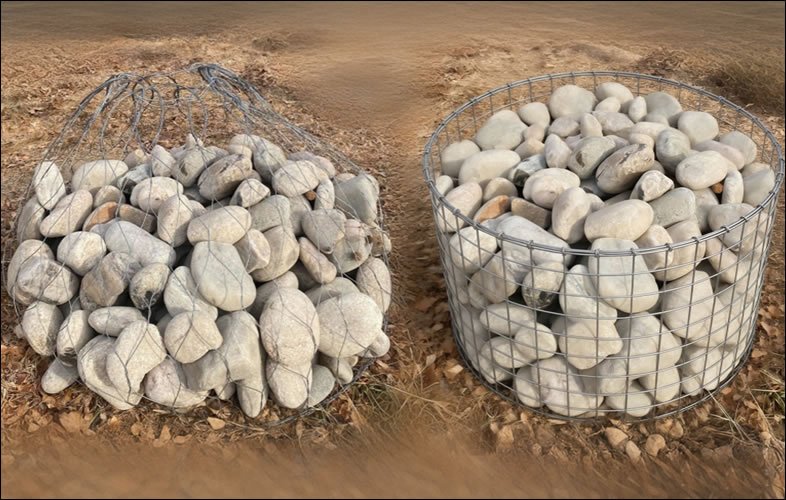

Cylindrical Gabion Units with Diameter 0.6-1 m and Length 2-3 m for River Training Structures
Specifications
- Diameter Range: 0.6–1.0 m.
- Length Range: 2.0–3.0 m.
- Mesh Opening: 60×80 mm hexagonal mesh.
- Wire Diameter: 2.7–3.0 mm steel wire.
- Edge Wire: 3.4 mm reinforcement.
- Stone Size: 80–200 mm rock fill.
- Volume Capacity: 1–2 m³ per unit.
- Weight Filled: 1–2 tons typical.
- Lacing Wire: 2.2 mm binding wire.
- Placement Distance: 0.5–1 m spacing.
Rockfall Netting Gabion Mesh Width 2-5 m and Coverage Length 20-100 m for Slope Protection
Specifications
- Mesh Width: 2–5 m roll width.
- Coverage Length: 20–100 m slope coverage.
- Mesh Opening: 60×80 mm or 80×100 mm.
- Wire Diameter: 2.7–3.0 mm steel wire.
- Anchor Bolt Length: 1.5–3 m anchor bolts.
- Support Cable: 8–12 mm steel cable.
- Rock Size: 100–300 mm stone diameter.
- Slope Angle: 30°–70° installation slope.
- Anchor Spacing: 2–4 m intervals.
- Energy Capacity: 100–500 kJ impact capacity.

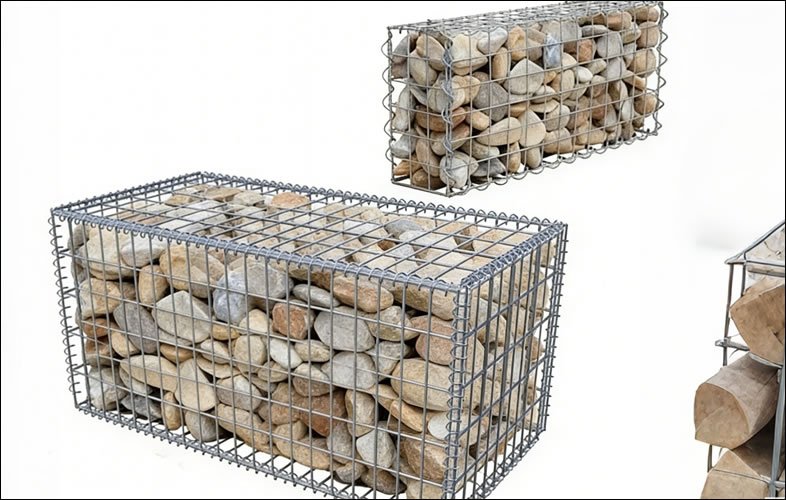

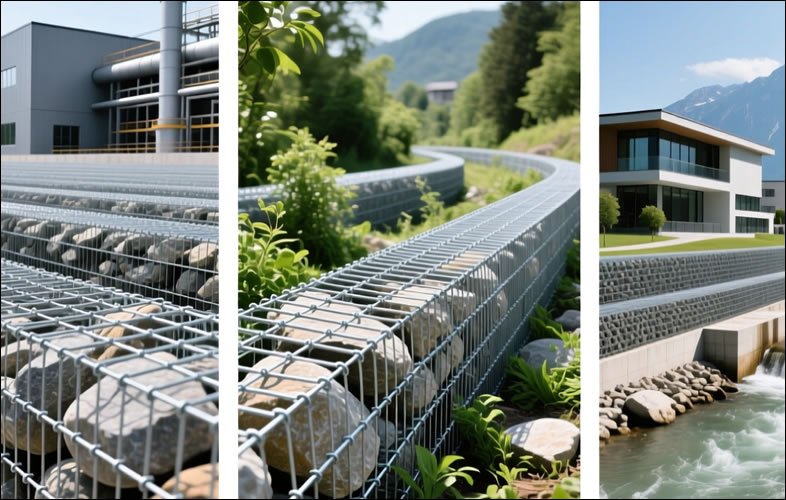

Welded Mesh Gabion Boxes with Length 0.5-2 m, Width 0.3-1 m, Height 0.3-1 m for Wall Systems
Specifications
- Length Range: 0.5–2.0 m.
- Width Range: 0.3–1.0 m.
- Height Range: 0.3–1.0 m.
- Mesh Opening: 50×50 mm or 75×75 mm.
- Wire Diameter: 3–5 mm steel wire.
- Zinc Coating: 200–275 g/m² galvanization.
- Stone Size: 50–150 mm filling rock.
- Spiral Wire: 3–4 mm spiral connectors.
- Panel Thickness: 3–5 mm wire grid.
- Unit Volume: 0.2–2 m³ per cage.

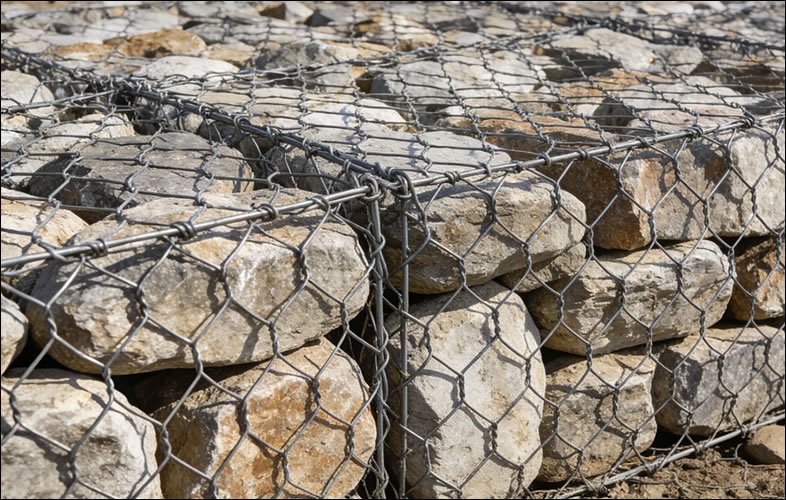

Double Twist Gabion Boxes with Length 2-4 m, Width 1 m, Height 0.5-1 m for River Control
Specifications
- Length Range: 2.0–4.0 m.
- Width Range: 1.0 m standard width.
- Height Range: 0.5–1.0 m.
- Mesh Opening: 60×80 mm hexagonal mesh.
- Wire Diameter: 2.7–3.0 mm steel wire.
- Edge Wire: 3.4 mm selvedge wire.
- Stone Size: 100–250 mm rock diameter.
- Partition Distance: 1 m diaphragm spacing.
- Coating Mass: 245–275 g/m² zinc coating.
- Volume Capacity: 1–4 m³ units.
Military Defensive Barrier Units with Length 1.2-3 m, Width 0.6-1 m, Height 1-2 m for Base Protection
Specifications
- Length Range: 1.2–3.0 m.
- Width Range: 0.6–1.0 m.
- Height Range: 1.0–2.0 m.
- Mesh Opening: 50×50 mm welded mesh.
- Wire Diameter: 4–5 mm steel wire.
- Geotextile Thickness: 250–300 g/m² liner.
- Fill Material: sand or soil fill.
- Unit Volume: 1–5 m³ capacity.
- Panel Thickness: 4–5 mm mesh panels.
- Stack Height: 1–3 layers barrier wall.

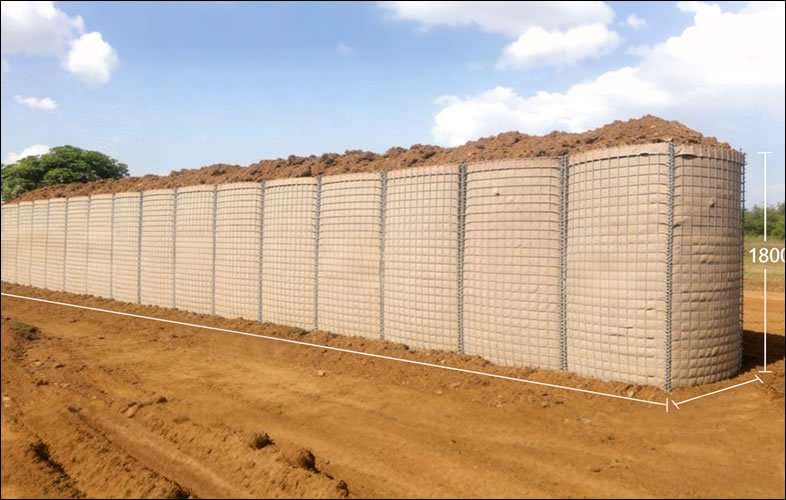

Sand Filled Gabion Units with Length 1-3 m, Width 0.5-1 m, Height 0.5-1 m for Soil Retention
Specifications
- Length Range: 1–3 m.
- Width Range: 0.5–1 m.
- Height Range: 0.5–1 m.
- Mesh Opening: 50×50 mm welded mesh.
- Wire Diameter: 3–5 mm steel wire.
- Fill Material: sand or soil.
- Volume Capacity: 1–3 m³ per unit.
- Weight Filled: 1–3 tons per unit.
- Panel Thickness: 3–5 mm steel mesh.
- Stack Layers: 1–4 wall layers.
Vegetation Gabion Wall Units with Length 1-3 m, Width 0.5-1 m, Height 0.5-1 m for Riverbank Landscaping

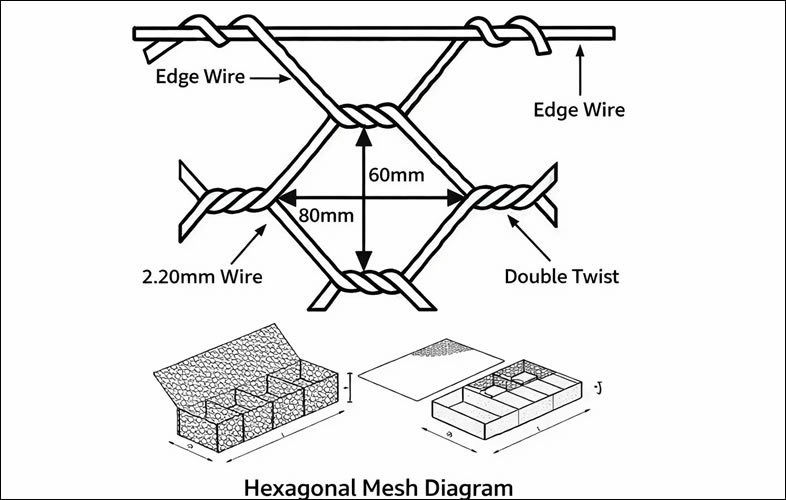

Hexagonal Mesh Gabion Units with Mesh 60×80 mm, Wire 2.2-2.7 mm for Riverbank Protection Structures
Specifications
- Mesh Opening: 60×80 mm hexagonal mesh.
- Wire Diameter: 2.2–2.7 mm steel wire.
- Edge Wire: 3.0–3.4 mm reinforcement.
- Length Range: 2–4 m cages.
- Width Range: 1 m width.
- Height Range: 0.5–1 m height.
- Stone Size: 80–200 mm rock.
- Partition Distance: 1 m diaphragm spacing.
- Zinc Coating: 245 g/m² coating.
- Unit Volume: 1–4 m³ capacity.
Welded Mesh Gabion Units with Length 0.5-2 m, Width 0.3-1 m, Height 0.3-1 m for Walls
Specifications
- Length Range: 0.5–2 m.
- Width Range: 0.3–1 m.
- Height Range: 0.3–1 m.
- Mesh Opening: 50×50 mm or 75×75 mm.
- Wire Diameter: 3–5 mm steel wire.
- Zinc Coating: 200–275 g/m² coating.
- Stone Size: 50–150 mm filling stone.
- Spiral Connector: 3–4 mm spiral wire.
- Panel Thickness: 3–5 mm steel grid.
- Unit Volume: 0.2–2 m³ capacity.

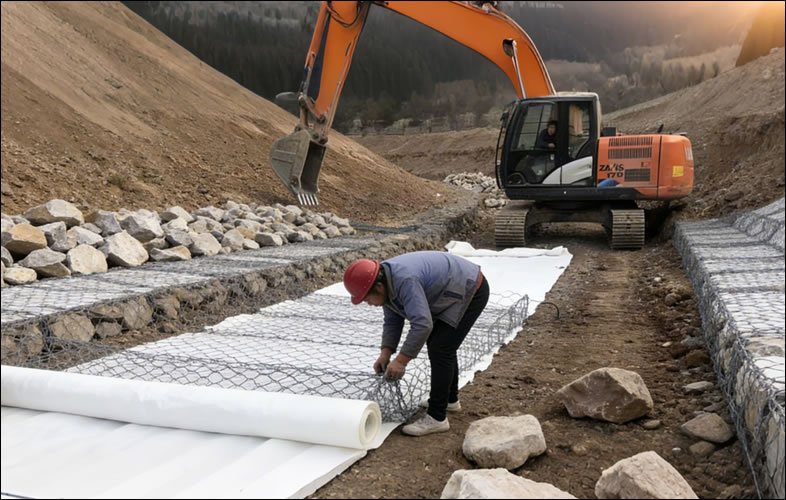

Gabion Mattress Units with Length 3-6 m, Width 2 m, Height 0.17-0.3 m for Riverbed Protection
Specifications
- Length Range: 3–6 m mattress length.
- Width Range: 2 m width.
- Height Range: 0.17–0.30 m thickness.
- Mesh Opening: 60×80 mm hexagonal mesh.
- Wire Diameter: 2.2–2.7 mm steel wire.
- Edge Wire: 3.0 mm reinforcement.
- Stone Size: 80–150 mm rock.
- Partition Distance: 1 m diaphragms.
- Zinc Coating: 245 g/m² galvanization.
- Coverage Area: 6–12 m² per mattress.

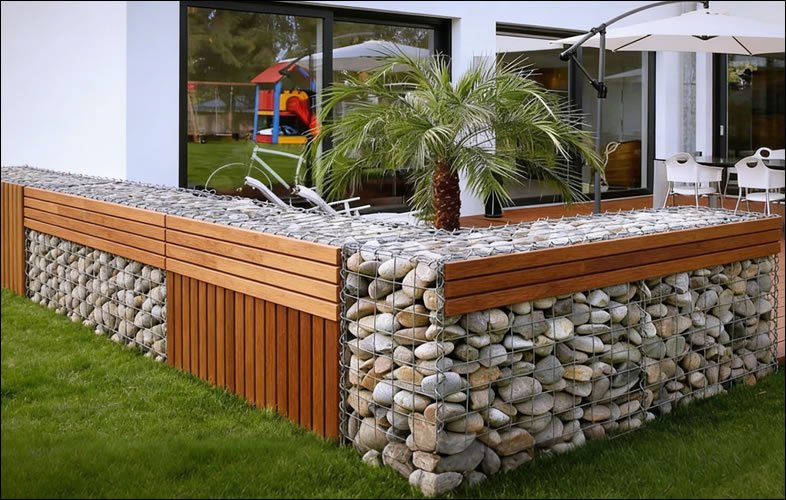

Engineering Gabion Wall Systems with Length 2-4 m, Width 1 m, Height 0.5-1 m for Fence Protection
Specifications
- Length Range: 2–4 m units.
- Width Range: 1 m width.
- Height Range: 0.5–1 m height.
- Mesh Opening: 80×100 mm hexagonal mesh.
- Wire Diameter: 2.7–3.4 mm steel wire.
- Edge Wire: 3.4 mm reinforcement.
- Stone Size: 100–250 mm rock.
- Partition Distance: 1 m diaphragm spacing.
- Wall Height: 1–2 m retaining structures.

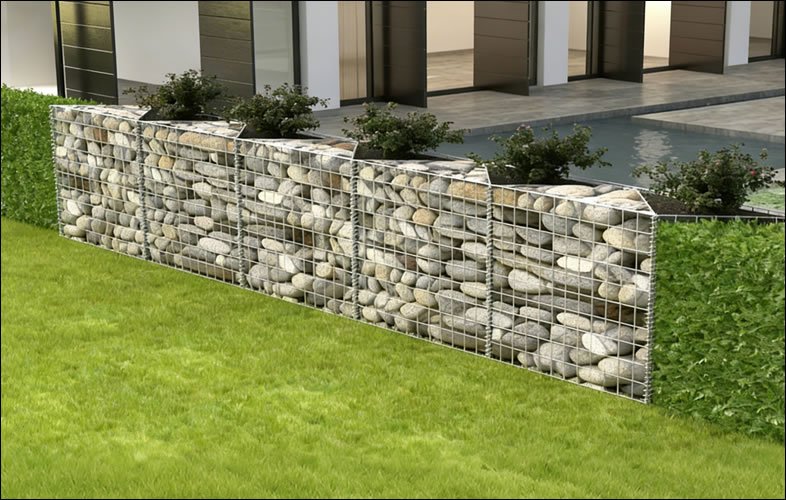

Architectural Gabion Wall Units with Length 1-2 m, Width 0.3-1 m, Height 0.3-1 m for Landscape Walls
Specifications
- Length Range: 1–2 m cages.
- Width Range: 0.3–1 m width.
- Height Range: 0.3–1 m wall height.
- Mesh Opening: 50×50 mm welded mesh.
- Wire Diameter: 3–5 mm steel wire.
- Stone Size: 50–120 mm decorative stone.
- Panel Thickness: 3–5 mm steel grid.
- Spiral Connector: 3–4 mm spiral wire.
- Unit Volume: 0.2–2 m³ capacity.
- Wall Height: 0.5–1 m landscape walls.
