Manufacturing Method for Hexagonal Triple Twisted Wire Mesh Gabion Boxes

Hexagonal triple twisted wire mesh gabion boxes are highly sought after for soil stabilization, erosion control, and retaining wall projects. Their exceptional strength, durability, and flexibility make them a preferred choice in demanding environments. By adhering to rigorous manufacturing standards and selecting high-quality materials, hexagonal triple twisted wire mesh gabion boxes offer a reliable and durable solution for a wide range of engineering and construction challenges.

Step 1: Wire Selection and Preparation

The process begins with selecting high-quality steel wire, typically with a diameter ranging from 2.0 mm to 4.0 mm. For enhanced durability and resistance to corrosion, galvanized wire or wire with an additional PVC coating is often used. The wire is then straightened and cleaned to ensure uniformity and optimal adhesion of coatings.

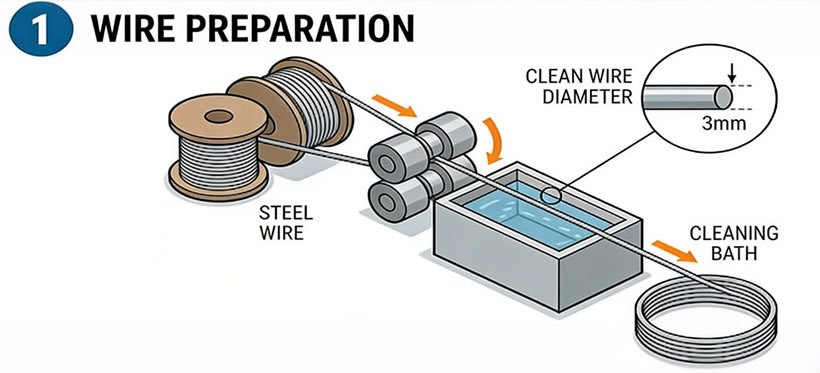

Insert Diagram 1 showing wire straightening and cleaning process

Step 2: Triple Twisted Weaving

This is the core of the manufacturing process and what gives triple twisted wire mesh its superior strength. Specialized weaving machines interweave three wires simultaneously, forming hexagonal openings. The wires are twisted around each other three times, creating a tight and secure bond. This structure ensures that even if a wire is broken, the remaining twists prevent the mesh from unraveling.

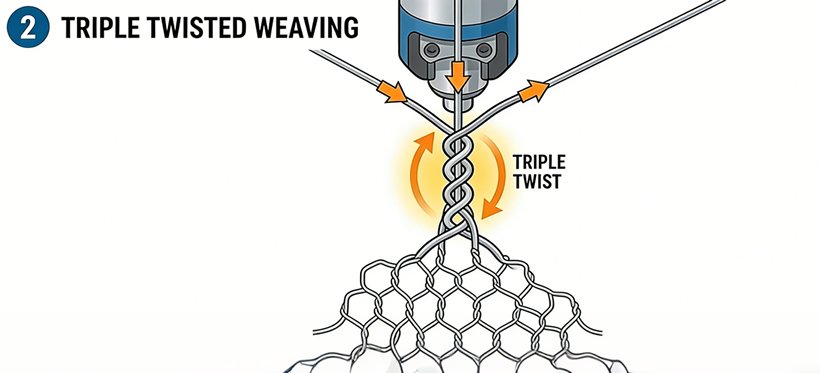

Insert Diagram 2 illustrating the intricate process of three wires being twisted together to form a hexagonal mesh

Step 3: Mesh Cutting and Shaping

Once the triple twisted wire mesh is woven to the desired length and width, it is precisely cut into sheets of the required dimensions for forming the gabion boxes. These sheets are then carefully shaped and bent to create the base, sides, and lid of the gabion structure.

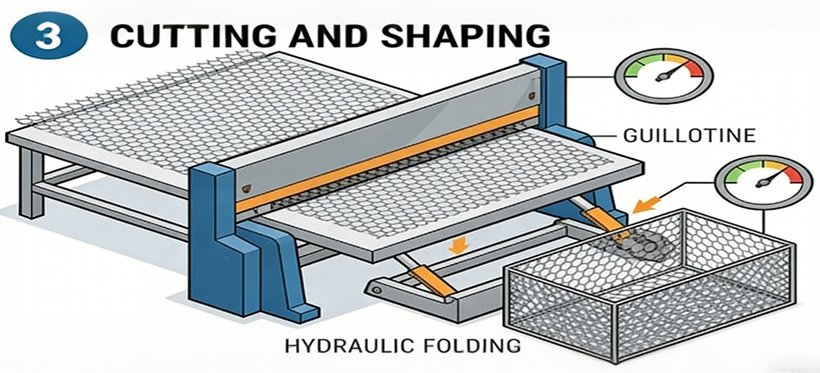

Insert Diagram 3 depicting the cutting and shaping of the mesh sheet into the components of a gabion box



Step 4: Assembly and Corner Reinforcement

The shaped mesh components are assembled into a box-like structure. Heavy-gauge edge wires, thicker than the mesh wire, are used to reinforce the corners and edges of the gabion. This adds crucial structural rigidity and helps distribute loads evenly. The base, sides, and diaphragms (if applicable) are securely laced together using specialized wire.

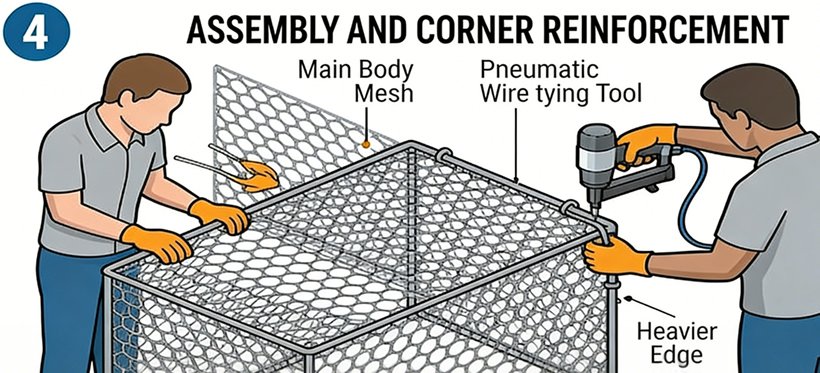

Insert Diagram 4 illustrating the joining of the mesh components and the addition of edge wires for reinforcement

Step 5: Quality Control and Finishing

The fully assembled gabion boxes undergo a rigorous quality control inspection. This includes checking dimensions, inspecting the mesh for defects, and ensuring the lacing is tight and secure. Galvanization or PVC coating integrity is also verified. The finished gabion boxes are then folded flat for efficient transport and storage.

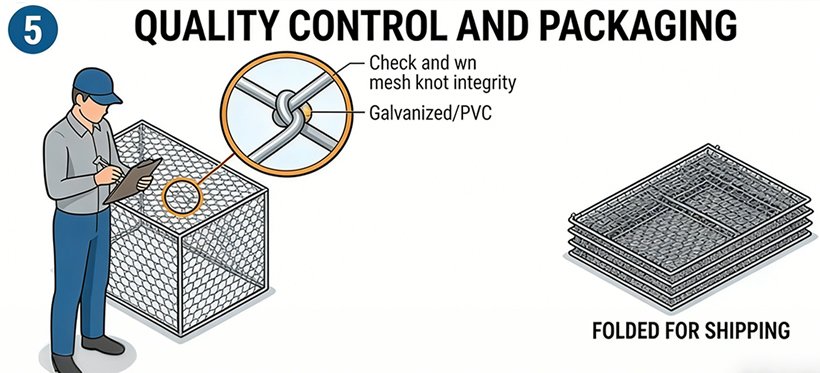

Insert Diagram 5 showing a quality control inspector examining the finished gabion box



Benefits

• Exceptional Strength: The triple twisted design provides superior tensile strength, enabling the gabions to withstand significant loads and pressure.
• Durability: High-quality galvanized or PVC-coated wire ensures long-lasting performance, even in harsh environmental conditions.
• Flexibility: The woven structure allows the gabions to adapt to minor ground movements without compromising their integrity.
• Permeability: The open mesh structure allows for efficient water drainage, reducing hydraulic pressure behind retaining walls.
• Ease of Installation: Gabion boxes are relatively easy to assemble and fill on-site with suitable rock material.

Applications

• Soil erosion control along riverbanks, slopes, and coastlines.
• Retaining walls for stabilization and supporting earth structures.
• Noise barriers along highways and railways.
• Landscaping and architectural features.
• Protective structures around bridges and culverts.
